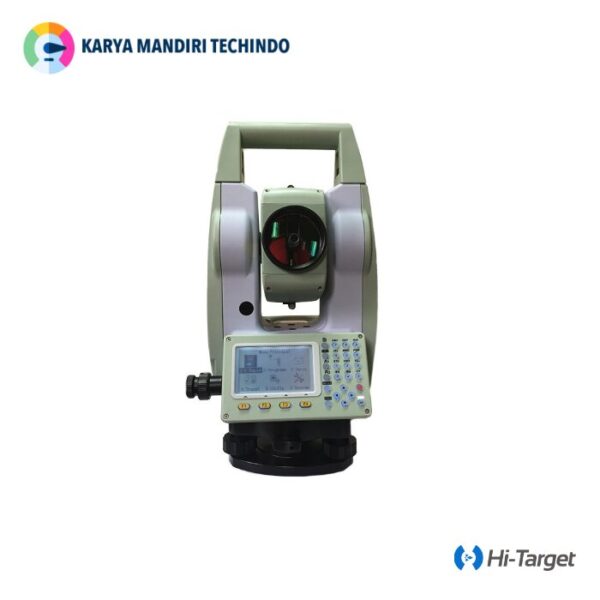

DescriptionHi-Target HTS-420R Total StationKarya Mandiri Techindo has a wide range of Hi-Target products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..Features Hi-Target HTS-420R Total StationDual-axis reflectorless total station ‘2 ’accuracy with 600meter rangeWireless bluetooth communicationBig storage, can be extended up to 32GBConvenient data import and export with USB portDual-axis CompensationThe HTS-420R is configured with advanced dual-axis compensator for auto error elimination and auto accuracy compensation.Absolute EncodingThe absolute encoding disk ensures high accuracy, efficiency and stable performance. No need to initialize but to measure the angle immediately as the HTS-420R is turned on. The previous data and setting are automatically saved. No data or setting is missed even though the HTS-420R is power-off unexpectedlyHigh-performance MCU STM32Based on ARM Cortex™-M processor, the STM32 MCU enabling the HTS-420R extra high processing speed and low-power consumption.BluetoothThe Bluetooth wireless technology makes HTS-420R accessible to any data collector for real-time communication. The third party field software such as Carlson SurvCE is fully compatible with the HTS-420R.Data StorageMultiple data transfer options such as SD card and Micro-USB port, which can work perfectly with our complimentary dual port USB disk.BacklightAdjustable backlight of the screen and the keyboard offer you a visible condition to work in the dark.Diagonal EyepieceSupport diagonal eyepiece for observations at steep line of sight. Calibration Software Real-time diagnosis can be run with HI-TARGET Calibration software, to find out the problem quickly to ensure trouble-free operation.New Data Transfer SoftwareThe newly easy-to-use data transfer software supports different type of output data format, which can be used in AutoCAD or other 3 party post processing software.Specifications Hi-Target HTS-420R Total StationAngle MeasurementMeasurement MethodAbsolute EncodingMinimum Readout1″/5″/10″（0.3mgon/1.5mgon/3mgon）optionalAccuracy2”Distance Measurement (HTS-420 with Reflector)Single Prism3000m (9,842ft.) under good conditionThree Prisms6000m (19,685ft.) under good conditionReflective Sheet800m (2,624 ft.)Accuracy2 mm 2ppmMeasuring Time (Fine/Quick/Tracking)1.5s/1s/ 0.5sDistance Measurement (HTS-420R Reflectorless)Reflectorless Range600m (1968.5 ft)Single Prism>7500m (24606ft.)Accuracy3mm 2ppmMeasuring Time1.5sTelescopeMagnification30XField of View1°30′ (2.7m at 100m)Minimum Focusing Distance1.2mReticleIlluminatedCompensatorSystemDual-axis liquid tilt sensorWorking Range±3′Setting Accuracy1″CommunicationBluetoothInterfaceStandard RS232, SD card , Micro USBInternal Data MemoryApprox. 20,000 PointsData FormatASCIIOperationOperation systemReal-time Operating SystemDisplayGray and white display with adjustable contrast; 280 X 160 pixels; 6 lines X 25 charactersKeyboard2 sides Alphanumeric backlit crystal keyboardLaser PlummetTypeLaser point, 4 brightness levels adjustment / Optical plummet (optional)Centering Accuracy1 mm at 1.5m instrument heightPower SupplyBattery TypeRechargeable Li-ion batteryVoltage/CapacityBT10: 7.4V (DC) / 3000mAhOperating Time With BT10Optimal 16 hours (Continuous angle measurement every 30 seconds) / 10 hours (typical)Measuring TimesApprox. 12000 timesWeightWeight (Incl. Battery&Tribrach): Approx. 5.5kg (12.1lb.)EnvironmentalOperating Temperature-20℃ ~﹢50℃( -4℉ to 122℉)Storage Temperature-40℃ ~﹢70℃(-40℉ to 158℉)Dust&Water Proof (IEC60529 Standard)/HumidityIP65, 95%, non-condensing Hi-Target HTS-420R – BrochureKARYA MANDIRI TECHINDO adalah Supplier Hi-Target HTS-420R Total Station dan juga menjual Brand Hi-Target. Lihat produk kami lainnya di sini JSI, SGI, SMG atau hubungi kami lewat Whatsapp 0821-3010-0456 atau via email [email protected].
