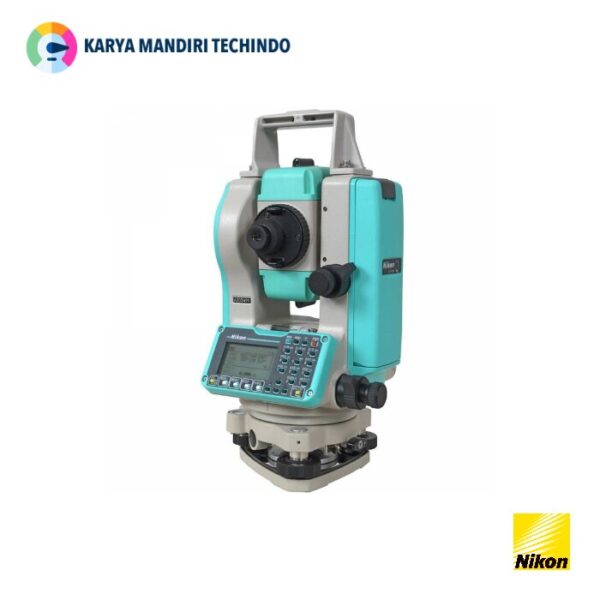

DescriptionNikon NPL-322 2″P Total StationKarya Mandiri Techindo has a wide range of Nikon products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..NPL-322 SeriesThe Nikon NPL-322 Series of mechanical total stations includes a 2″ dual face and 5″ single face models. Both NPL-322 models feature dual axis compensation to correct for errors in tilt in the horizontal and vertical axes, a reflectorless EDM with 400 meter (1300 feet) range, wireless Bluetooth connections to external data collectors and 50,000 point onboard storage.Using the same rechargeable long life Li-ion battery as the Nivo series, combined with low power consumption design, the NPL-322 provides the longest possible time in the field. For convenience, the Nikon NPL-322 total stations include two batteries and a dual charger, to support even the longest of working days.The NPL-322 Total Station delivers an economic, versatile, and easy-to-use platform to ensure you get the job done right. Nikon’s legendary optics effectively allow in more light to give you brighter, clearer images. You’ll see the difference when you look through a Nikon Total Station even in the low-visibility conditions typical in the field. You’ll see much more detail and much less distortion, especially over longer distances. Better optics help you aim more precisely, and they’re much easier on your eyes – something you’ll really appreciate on long workdays.Features Nikon NPL-322 2″P Total Station2″angle accuraciesPrism and reflectorless measurementsFast, accurate EDMConvenient and long-lasting Li-ion batteryEasy-to-use keypadRugged and lightweightBluetooth enabledDual axis compensationSpecifications Nikon NPL-322 2″P Total StationDistance measurementRange with Nikon specified prisms – Good conditions (No haze, visibility over 40 km (25 miles)) With reflector sheet (5 × 5 cm): 1.5 m to 200 m (4.9 ft to 787 ft) With single prism 6.25 cm (2.5 in): 3,000 m (9,840 ft)Range reflectorless mode – KGC (18%)1 Good: 250 m (820 ft) Normal: 200 m (656 ft) Difficult: 150 m (492 ft) – KGC (90%)1 Good: 400 m (1312 ft) Normal: 350 m (1148 ft) Difficult: 250 m (820 ft)Accuracy ISO 17123-4 (Precise mode) – Prism2 : ±(2 2 ppm × D) mm – Reflectorless/Reflector sheet3 : ±(3 3 ppm × D) mmMeasuring interval4 – Prism mode Precise mode: 1.1 sec. Normal mode: 0.8 sec. – Reflectorless mode Precise mode: 1.2 sec. Normal mode: 1.0 sec. – Least count Precise mode: 1 mm (0.002 ft) Normal mode: 10 mm (0.02 ft)Angle MeasurementISO 17123-3 accuracy (horizontal and vertical): 2″/0.6 mgon, 5″/1.5 mgonReading system: Photoelectric detection by incremental encoderCircle diameter: 88 mm (3.46 in)Horizontal angle: 2″:Diametrical, 5″:SingleVertical angle: SingleMinimum increment (Degree, Gon, MIL6400): Degree: 1/5/10″, Gon: 0.2/1/2 mgon, MIL6400: 0.005/0.02/0.05 milTelescopeTube length: 125 mm (4.9 in)Image: ErectMagnification: 30× (18x/36x with optional eyepieces)Effective diameter of objective: 45 mm (1.77in) – EDM: 50 mm (1.97 in)Field of view: 1°20′Resolving power: 3″Minimum focusing distance: 1.5 m (4.9 ft)Laser Pointer: Coaxial Red Light Tilt SensorType: Dual axisMethod: Liquid-electric detectionCompensation range: ±3′ CommunicationsCommunication ports: 1 x serial (RS-232C) Wireless CommunicationsIntegrated Bluetooth General SpecificationsLevel vials – Sensitivity of Plate level vial: 30″/2 mm – Sensitivity of Circular level vial: 10’/2 mmOptical plummet – Image: Erect – Magnification: 3× – Field of view: 5° – Focusing range: 0.5 m (1.6 ft) to ∞Display: 2″:Both sides, backlit, graphic LCD (128 × 64 pixel), 5″:Single side, backlit, graphic LCD (128 × 64 pixel)Point memory: 50,000 recordsDimensions (W x D x H): 168 mm x 173 mm x 335 mm (6.6 in x 6.8 in x 13.1 in)Weight (approx.) – Main unit (without battery): 4.9 kg (10.8 lb) – Battery: 0.1 kg (0.2 lb) – Carrying case: 2.5 kg (5.5 lb) – Dual charger and AC adaptor: 0.6 kg (1.3 lb PowerClip-on Li-on battery (x2 incl.) – Output voltage: 3.8 V DCOperating time5 (per battery) – approx. 4.5 hours (continuous distance/angle measurement) – approx. 11 hours (distance/angle measurement every 30 seconds) – approx. 22 hours (continuous angle measurement)Charging time – Full charge: 4 hours – External power supply: N/AEnvironmentalAmbient temperature range: –20 °C to 50 °C (–4 °F to 122 °F)Atmospheric correction – Temperature range: –40 °C to 60 °C (–40 °F to 140 °F) – Barometric pressure: 400 mmHg to 999 mmHg/533 hPa to 1,332 hPa/15.8 inHg to 39.3 inHgDust and water protection: IP54CertificationClass B Part 15 FCC certification, CE Mark approval.Laser safety IEC60825-1:2007Reflectorless mode: Class 1Laser Pointer: Class 2Prism mode: Class 1Bluetooth type approvals are country specific (1) Kodak Gray Card, Catalog number E1527795 (2) ±(2 3 ppm × D) mm –20 °C to –10 °C, 40 °C to 50 °C (–4 °F to 14 °F, 104 °F to 122 °F) 1.5m to 5m ± (5 3 ppm × D) mm (3) 1.5m to 5m ± (10 3 ppm × D) mm (4) Measuring time may vary depending on measuring distance and conditions. For the initial measurement, it may take a few seconds. (5) Battery life specification at 25 °C (77 °F). Operation time may be shorter if battery is not new. Operation time may be shorter in low temperatures. IncludingunitNikon NPL-322 2″PCharger BateryKabel Data CD SoftwareSertifikat KalibrasiGaransi 1 Tahun11111 Perawatan : Selain dikalibrasi rutin ada baiknya untuk perawatan hariannya, setelah theodolite digunakan dilap dari kotoran atau debu yang menemepel menggunakan kain bersih atau majun dengan sedikit minyak kayu putih.Manfaat Kalibrasi : Menjaga kondisi instrumen ukur dan bahan ukur agar tetap sesuai dengan spesefikasinyaUntuk mendukung sistem mutu yang diterapkan di berbagai industri pada peralatan laboratorium dan produksi yang dimiliki.Bisa mengetahui perbedaan (penyimpangan) antara harga benar dengan harga yang ditunjukkan oleh alat ukur.Kalibrasi Sebaiknya Dilakukan Secara Rutin & Berkala, Baiknya Alat Itu Dikalibrasi Per 6 Bulan Sekali Atau Waktu Pemakaian Alat Sudah Mencapai 1.000 jam. Nikon NPL-322 2″P – CatalogKARYA MANDIRI TECHINDO adalah Supplier Nikon NPL-322 2″P Total Station dan juga menjual Brand Nikon. Lihat produk kami lainnya di sini JSI, SGI, SMG atau hubungi kami lewat Whatsapp 0821-3010-0456 atau via email [email protected].
